DRIVESHAFT.
Part Number: 8D0407272ED
Supersession(s): 8D0-407-272-ED; 8D0407272BC

CV Axle Assembly. DRIVESHAFT.
Part Number: 8D0407452RX
Supersession(s): 8D0-407-452-RX; 8D0407272AL; 8D0407272BC; 8D0407272ED; 8D0407452JX

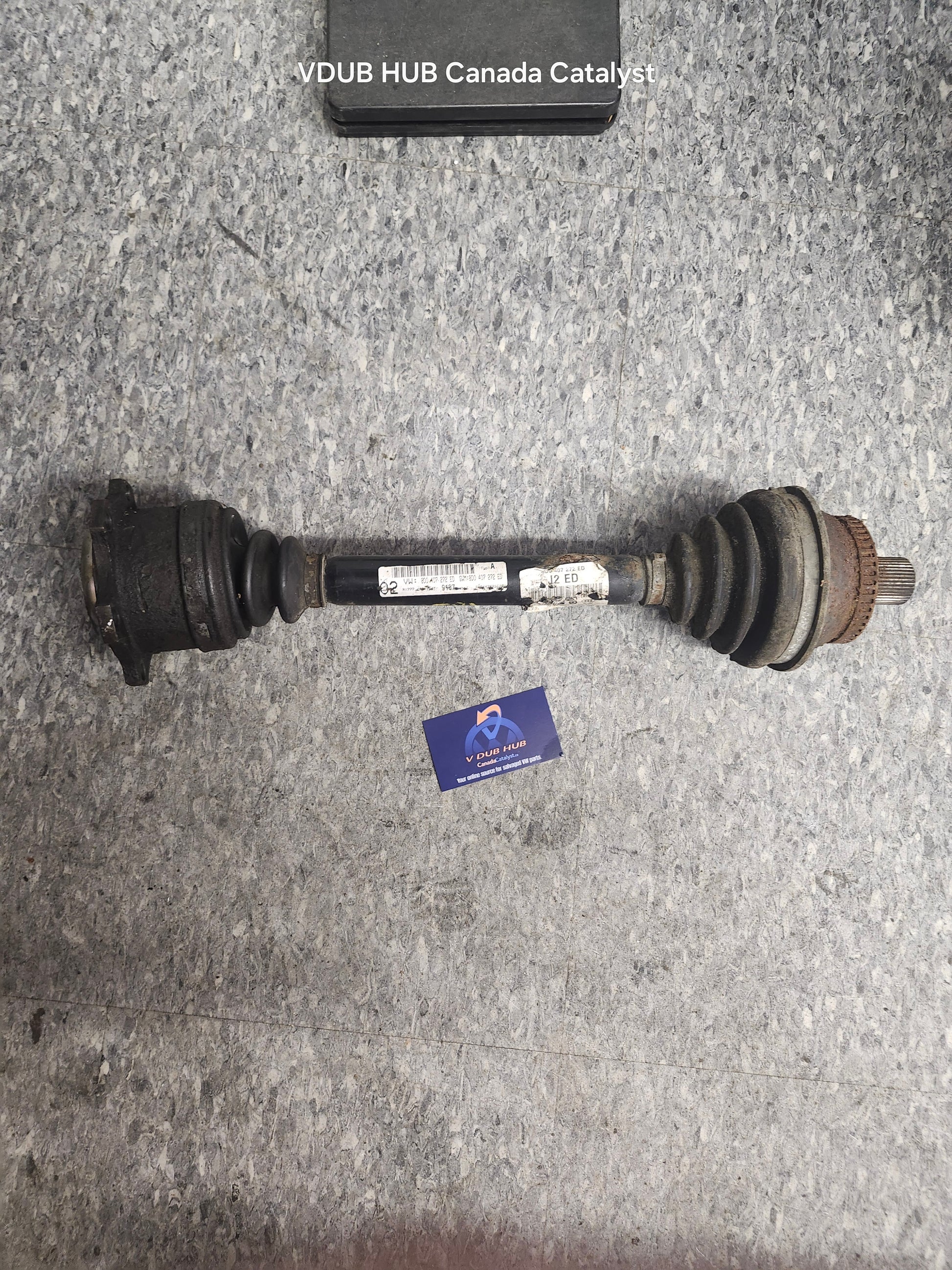

8D0407272ED corresponds to the front right (passenger side) CV axle shaft assembly for several Volkswagen Passat and Audi A4/S4 models equipped with an automatic transmission.

Volkswagen Passat (B5 & B5.5 Platforms): 1998 to 2005 (FWD/AWD with Automatic Transmission).
Compatible with L4 1.8L, V6 2.8L, and W8 4.0L engines.
Audi A4: 1996 to 2001 (with V6 2.8L engines and Automatic Transmission).
Audi A4 Quattro: 1996 to 2001 (with V6 2.8L engines and Automatic Transmission).
Audi S4: 2000 to 2002 (V6 2.7L with Automatic Transmission)

Compressed Length: Approximately 19.63 inches.
Output Shaft Spline Count: 38.
Input Shaft Bolt Count: 6 (bolt-on connection style).

Volkswagen Passat 1.8L A/T AWD GLS 4 Motion Sedan
2004, 2005
Volkswagen Passat 1.8L A/T FWD GL Sedan
2003, 2004, 2005
Volkswagen Passat 1.8L A/T FWD GLS Sedan
2001, 2002, 2003, 2004, 2005
Volkswagen Passat 1.8L M/T FWD GL Sedan
2003, 2004
Volkswagen Passat 1.8L M/T FWD GLS Sedan
2001, 2002, 2003, 2004, 2005
Volkswagen Passat 2.0L TDI-PD DIESEL A/T FWD GL TDI Sedan
2004, 2005
Volkswagen Passat 2.0L TDI-PD DIESEL A/T FWD GLS TDI Sedan
2004, 2005
Volkswagen Passat 2.8L V6 A/T AWD 4 Motion Sedan
2000
Volkswagen Passat 2.8L V6 A/T AWD GLS 4 Motion Sedan
2002, 2005
Volkswagen Passat 2.8L V6 A/T AWD GLS Sedan
1999
Volkswagen Passat 2.8L V6 A/T AWD GLX 4 Motion Sedan
2001, 2002, 2005
Volkswagen Passat 2.8L V6 A/T AWD GLX Sedan
1999
Volkswagen Passat 2.8L V6 A/T FWD GL Sedan
2003, 2004
Volkswagen Passat 2.8L V6 A/T FWD GLS Sedan
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat 2.8L V6 A/T FWD GLX Sedan
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat 2.8L V6 A/T GLS Sedan
1998
Volkswagen Passat 2.8L V6 A/T GLX Sedan
1998
Volkswagen Passat 2.8L V6 M/T AWD GLS Sedan
1999
Volkswagen Passat 2.8L V6 M/T AWD GLX Sedan
1999
Volkswagen Passat 2.8L V6 M/T FWD GL Sedan
2003, 2004
Volkswagen Passat 2.8L V6 M/T FWD GLS Sedan
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat 2.8L V6 M/T FWD GLX Sedan
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat 2.8L V6 M/T GLS Sedan
1998
Volkswagen Passat 2.8L V6 M/T GLX Sedan
1998
Volkswagen Passat 2.8L VR6 V6 A/T AWD GLS Sedan
1999
Volkswagen Passat 2.8L VR6 V6 A/T AWD GLX Sedan
1999
Volkswagen Passat 2.8L VR6 V6 A/T FWD GLS Sedan
1999
Volkswagen Passat 2.8L VR6 V6 A/T FWD GLX Sedan
1999
Volkswagen Passat 2.8L VR6 V6 A/T GLS Sedan
1998
Volkswagen Passat 2.8L VR6 V6 M/T AWD GLS Sedan
1999
Volkswagen Passat 2.8L VR6 V6 M/T AWD GLX Sedan
1999
Volkswagen Passat 2.8L VR6 V6 M/T FWD GLS Sedan
1999
Volkswagen Passat 2.8L VR6 V6 M/T FWD GLX Sedan
1999
Volkswagen Passat 2.8L VR6 V6 M/T GLS Sedan
1998
Volkswagen Passat 4.0L 8 cylinder A/T AWD W8 Sedan
2002, 2003, 2004
Volkswagen Passat 4.0L 8 cylinder M/T AWD W8 Sedan
2004
Volkswagen Passat Wagon 1.8L A/T AWD GLS 4 Motion Wagon
2004, 2005
Volkswagen Passat Wagon 1.8L A/T FWD GL Wagon
2003, 2004, 2005
Volkswagen Passat Wagon 1.8L A/T FWD GLS Wagon
2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 1.8L M/T FWD GL Wagon
2003, 2004
Volkswagen Passat Wagon 1.8L M/T FWD GLS Wagon
2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 2.0L TDI-PD DIESEL A/T FWD GL TDI Wagon
2004, 2005
Volkswagen Passat Wagon 2.0L TDI-PD DIESEL A/T FWD GLS TDI Wagon
2004, 2005
Volkswagen Passat Wagon 2.8L V6 A/T AWD 4 Motion Wagon
2000
Volkswagen Passat Wagon 2.8L V6 A/T AWD GLS 4 Motion Wagon
2002, 2005
Volkswagen Passat Wagon 2.8L V6 A/T AWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L V6 A/T AWD GLX 4 Motion Wagon
2001, 2002, 2005
Volkswagen Passat Wagon 2.8L V6 A/T AWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L V6 A/T FWD GL Wagon
2003, 2004
Volkswagen Passat Wagon 2.8L V6 A/T FWD GLS Wagon
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 2.8L V6 A/T FWD GLX Wagon
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 2.8L V6 A/T GLS Wagon
1998
Volkswagen Passat Wagon 2.8L V6 M/T AWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L V6 M/T AWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L V6 M/T FWD GL Wagon
2003, 2004
Volkswagen Passat Wagon 2.8L V6 M/T FWD GLS Wagon
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 2.8L V6 M/T FWD GLX Wagon
1999, 2000, 2001, 2002, 2003, 2004, 2005
Volkswagen Passat Wagon 2.8L V6 M/T GLS Wagon
1998
Volkswagen Passat Wagon 2.8L VR6 V6 A/T AWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 A/T AWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 A/T FWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 A/T FWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 A/T GLS Wagon
1998
Volkswagen Passat Wagon 2.8L VR6 V6 M/T AWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 M/T AWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 M/T FWD GLS Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 M/T FWD GLX Wagon
1999
Volkswagen Passat Wagon 2.8L VR6 V6 M/T GLS Wagon
1998
Volkswagen Passat Wagon 4.0L 8 cylinder A/T AWD W8 Wagon
2002, 2003, 2004
Volkswagen Passat Wagon 4.0L 8 cylinder M/T AWD W8 Wagon
2004
