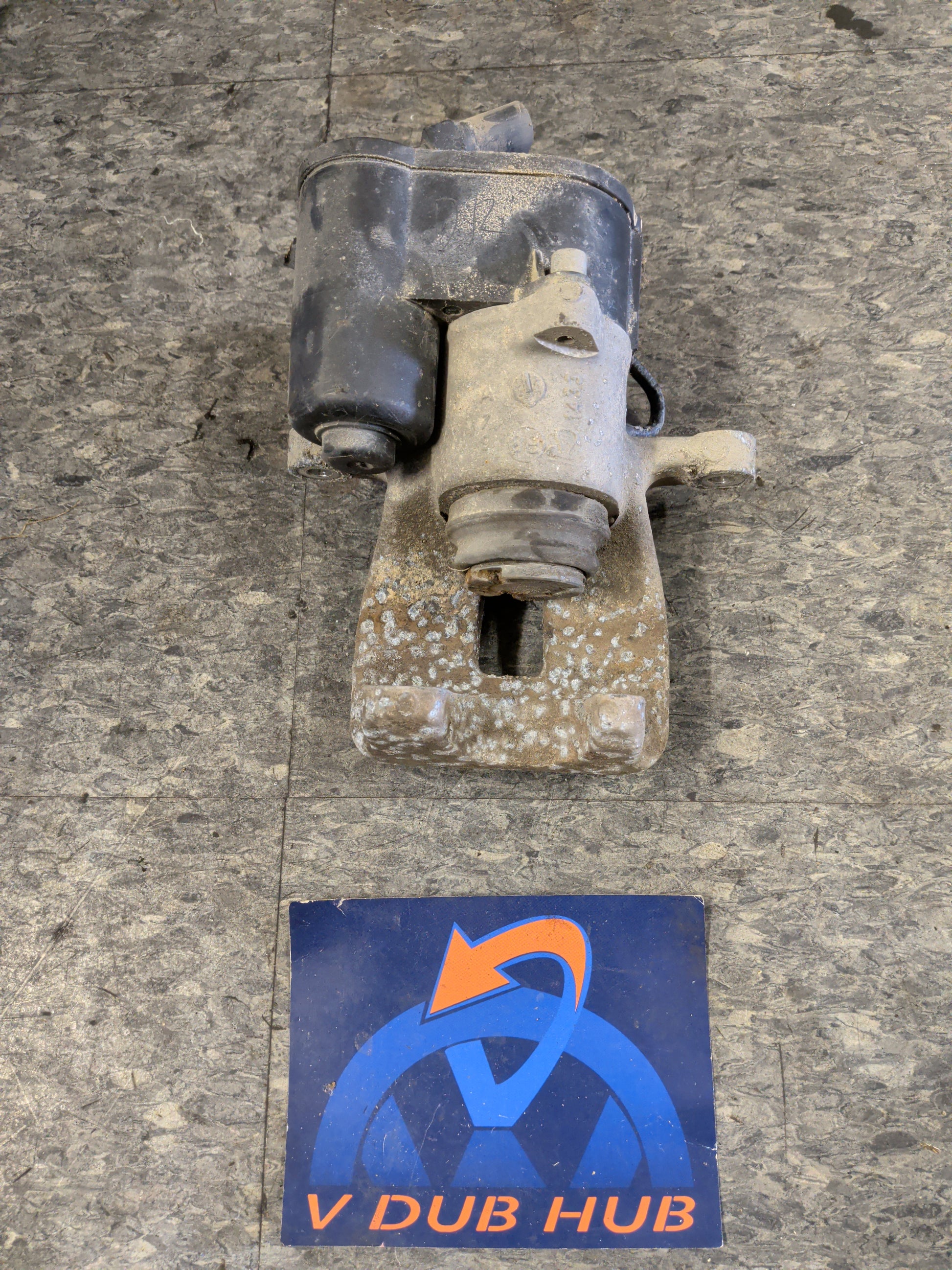

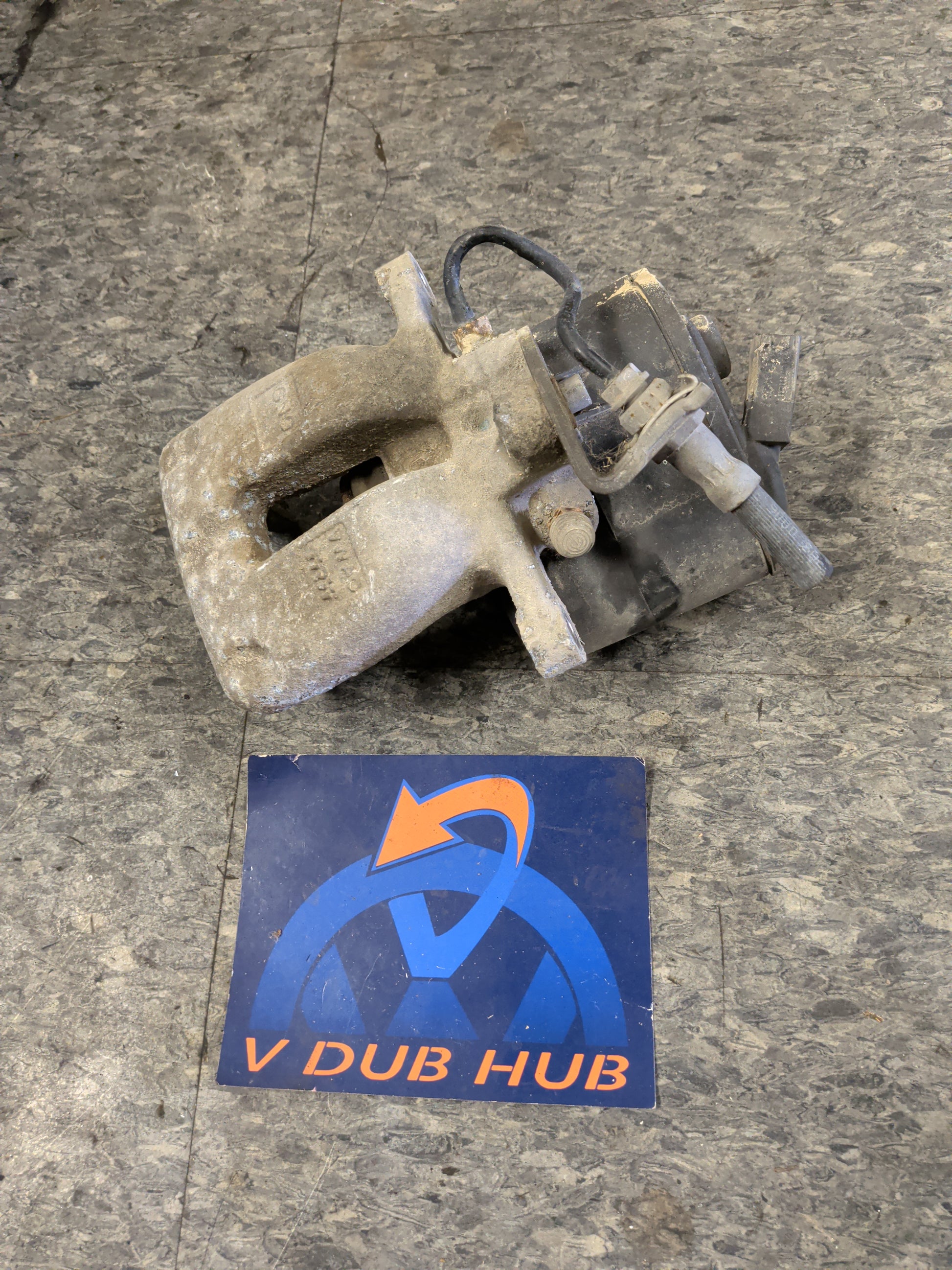

B6 driver rear caliper
B6 driver rear caliper
Regular price
$85.00 CAD
Regular price
Sale price
$85.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Has the electric parking brake servo
3C0615403E
3C0998281A
Volkswagen Passat (B6 Chassis / Typ 3C): 2005 – 2011 (Sedan & Wagon variants across 2.0T, 3.6L, and TDI trims).
Volkswagen CC / Passat CC: 2009 – 2014.
Volkswagen Tiguan (First Generation / 5N): 2008 – 2015.
Audi Q3: 2012 – 2015
⚙️ Component Breakdown
3C0615403E (Rear Left Brake Caliper): The factory cast-iron hydraulic housing designed specifically for the driver-side rear wheel setup.
3C0998281A (EPB Servo / Actuator Motor): The integrated electronic motor kit that mounts directly to the back of the caliper housing to electrically clamp and release the parking brake.
🛠️ Important Installation Notice (Torx Count)Volkswagen used two distinct mechanical splines on the B6 Passat chassis for the motor-to-caliper engagement:
6-Torx (6 Spline): Common on earlier build dates.
12-Torx (12 Spline): Found on mid-to-late platform cycles.
⚠️ Critical Check: The 3C0998281A factory part number natively matches the 12-Torx gear pattern. Before unboxing your replacement or bolting it up, look inside the actuator housing or at your existing harness plug to ensure it matches the 12-spline configuration on your vehicle. You will also need a diagnostic scan tool (like VCDS or OBDeleven) to retract the electronic calipers into "service mode" before compressing the piston, otherwise, you risk permanently breaking the internal plastic gears.
