OEM Turbocharger – VW 2.0L TDI CJAA / CBEA (03L253056)

Fitment:
Volkswagen Jetta MK6 – 2.0L TDI (CJAA / CBEA)
Volkswagen Golf MK6 – 2.0L TDI (CJAA / CBEA)
Volkswagen Passat B7 – 2.0L TDI (CJAA)
Model Years: 2009–2014

OEM Part Number: 03L253056

Core Charge: $100 CAD — Learn about our core charge policy

Product Overview

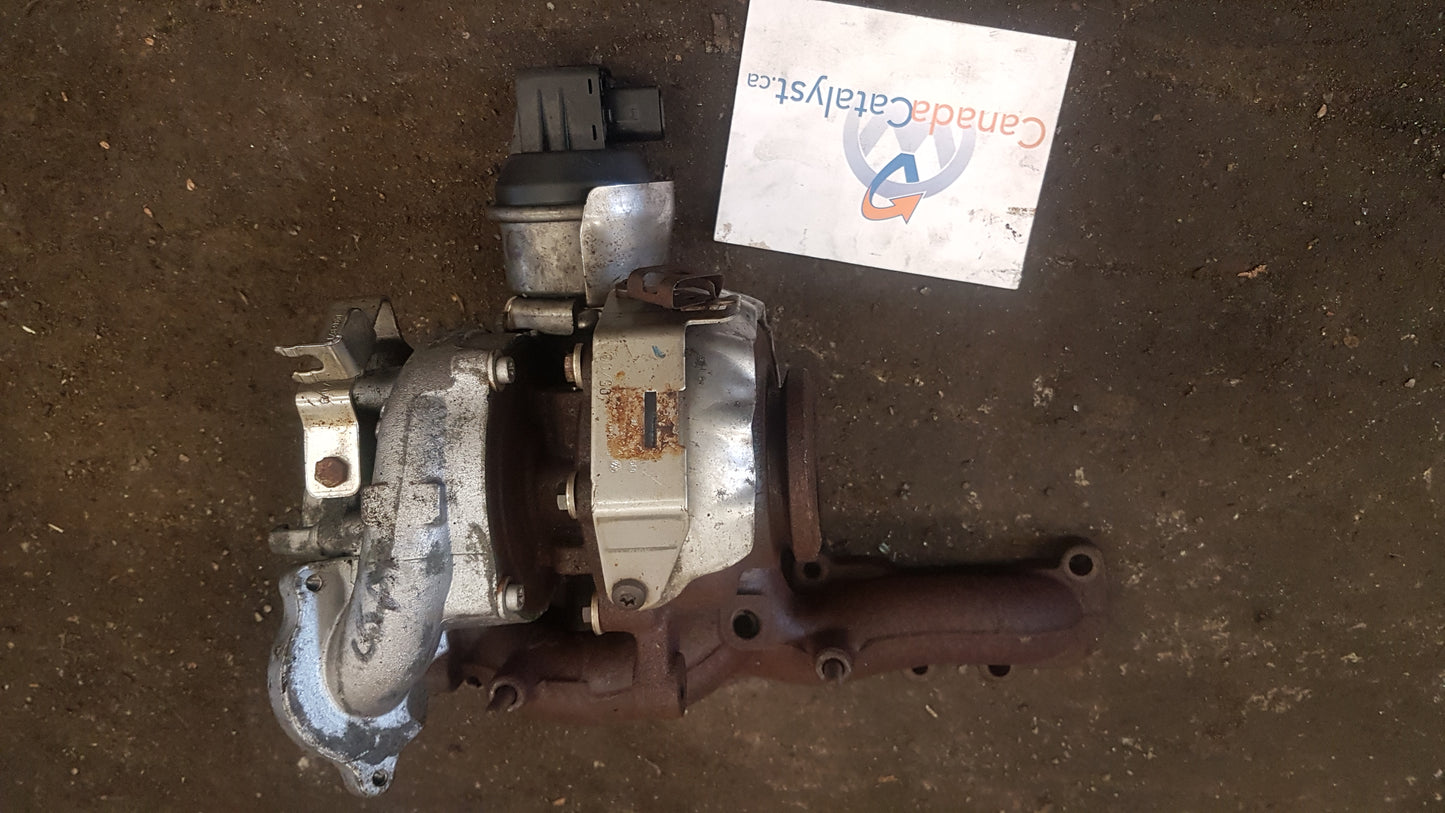

This is an OEM turbocharger (part number 03L253056) pulled from a CJAA-equipped VW TDI. The CJAA turbo is a direct bolt-on replacement for other CJAA-powered vehicles. It can also be used on CBEA engines, though an intercooler pipe adapter will be required for that application.

The 03L253056 is a variable-geometry turbocharger (VGT) that uses adjustable vanes to optimize boost pressure across the RPM range — delivering strong low-end torque and efficient highway cruising that the 2.0L TDI is known for.

Key Features

• Variable Geometry Turbo (VGT): Adjustable vanes provide responsive boost at low RPM and controlled boost at high RPM for optimal efficiency.
• OEM Quality: Factory-spec unit — no aftermarket compromises on fitment or durability.
• Direct Fit for CJAA: Bolt-on replacement with no modifications required.
• CBEA Compatible: Can be used on CBEA engines with an intercooler pipe adapter.

Common Failure Symptoms

• Loss of power or boost (limp mode)
• Excessive smoke (black or blue)
• Loud whining or rattling from the turbo
• P0299 – Turbocharger Underboost fault code
• N75 solenoid or VGT actuator faults

Fitment Summary

• 2009–2014 VW Jetta TDI MK6 (CJAA / CBEA)
• 2010–2014 VW Golf TDI MK6 (CJAA / CBEA)
• 2012–2014 VW Passat TDI B7 (CJAA)

OEM Information

OEM Part Number: 03L253056
Always inspect oil feed and return lines when replacing the turbocharger. Replace the turbo inlet and outlet gaskets and use fresh engine oil at startup to protect the new unit.
